What are the key components of the vacuum system of the vacuum brazing furnace?

2025-05-24 14:50:59

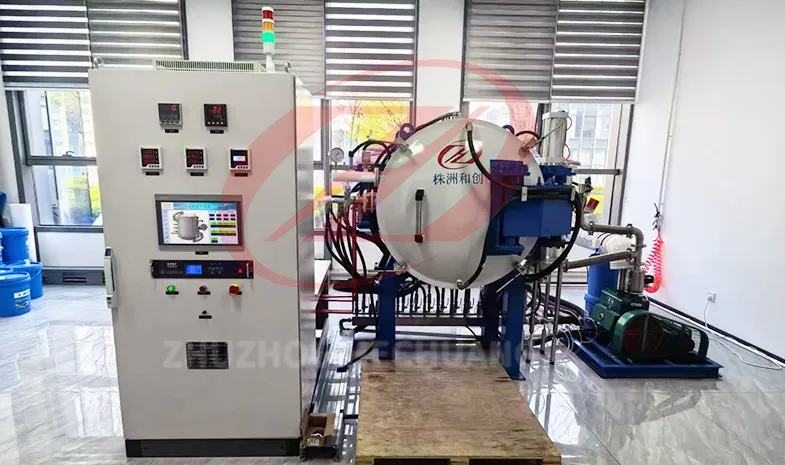

The vacuum system of a Vacuum brazing furnace is a key part to ensure that the required high vacuum level is achieved in the furnace, thereby achieving oxidation-free, high-quality brazed joints. The system is usually composed of the following key components:

Vacuum pump: This is the main body of the vacuum system, responsible for extracting air and other gases from the brazing furnace to create the required vacuum environment. Depending on the different process requirements and vacuum requirements, a combination of various types of pumps may be used, such as mechanical pumps (as primary vacuum pumps), Roots pumps, diffusion pumps or turbomolecular pumps, etc.

Cold trap (condenser): In some applications, especially when extremely high vacuum levels are required, cold traps are installed on the vacuum path. The cold trap lowers the temperature through the cooling medium, causing specific gases (such as water vapor) to condense and be captured, preventing them from entering the subsequent vacuum pump, helping to maintain a higher vacuum level and protecting the vacuum pump from contamination.

Valves: Including main valves, bypass valves, vent valves, etc., used to control the direction and rate of gas flow, and quickly return to atmospheric pressure when necessary. These valves are essential for precise control of vacuum levels and can effectively manage the pressure change process of the entire system.

Vacuum gauge: Used to monitor the vacuum level in the furnace in real time. Common vacuum measuring instruments include Pirani gauges, ionization gauges, and thermal conductivity gauges. Each instrument is suitable for different ranges of vacuum measurement to ensure that it can accurately reflect the current working conditions.

Pipes and seals: The piping system connecting all the above components must have good sealing performance to avoid any leakage that causes a drop in vacuum. The selection of appropriate materials and designs is very important to keep the system running efficiently.

Control system: Modern vacuum brazing furnaces are equipped with advanced automated control systems that can program and monitor the operation of the entire vacuum system, ensure that each component works in coordination, and automatically adjust the operating status according to preset parameters.

In summary, an effective vacuum system not only relies on efficient exhaust devices, but also requires precise measuring tools, reliable sealing technology, and intelligent control systems to work together to meet the needs of various industrial applications.
