Do you know the working principle and application of high temperature vacuum sintering furnace?

2025-04-11 13:58:14

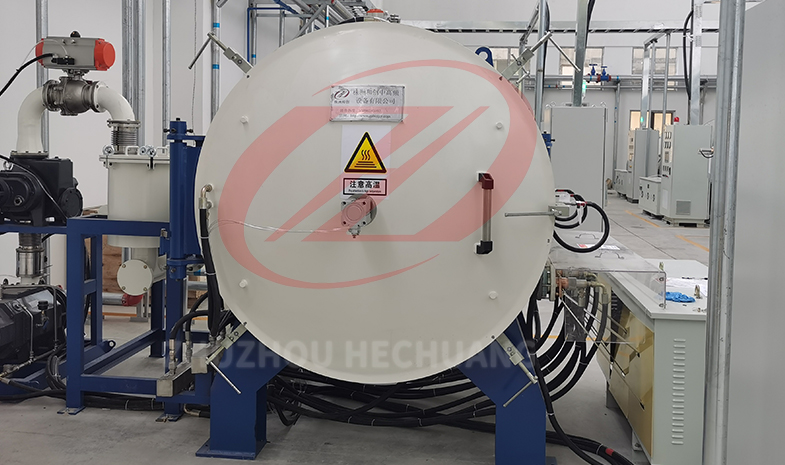

A high-temperature vacuum sintering furnace is specialized equipment designed for sintering materials under elevated temperatures and vacuum conditions. Its operational principle relies on leveraging a vacuum environment to minimize or eliminate oxidation, enabling metal powders or other materials to consolidate without contamination. This sintering process typically occurs at high temperatures ranging between 1000°C and 2400°C, depending on the specific material being processed.During operation, the material to be sintered is first placed into the furnace chamber, which is then evacuated to remove air and residual gases. This step is critical to prevent oxidation during heating. The chamber is subsequently heated using electric heating elements fabricated from refractory materials such as molybdenum or tungsten. The vacuum environment facilitates uniform heat distribution across the material, ensuring high-quality sintering outcomes. Once the target temperature is achieved, it is maintained for a predetermined duration to allow complete material consolidation, followed by a controlled cooling phase to finalize the process.

High-temperature vacuum sintering furnaces are widely utilized across multiple industries. In the aerospace sector, they are employed to manufacture high-performance alloy components requiring exceptional strength, corrosion resistance, and lightweight properties. Within the electronics industry, these furnaces produce ceramic substrates, resistors, and other electronic components demanding precise electrical performance and stability. Additional applications include the fabrication of biocompatible materials for medical devices, radiation-resistant materials in nuclear energy, and wear-resistant components for the automotive industry.

In summary, the high-temperature vacuum sintering furnace enables the production of complex, high-performance materials across diverse sectors. Its unique processing conditions ensure superior material quality and performance, addressing the ever-increasing dem
