Why is the Silicon Carbide Sintering Furnace a Critical Equipment for Producing Silicon Carbide Materials?

2025-04-11 13:58:50

The silicon carbide (SiC) sintering furnace is utilized for the vacuum reaction sintering of silicon carbide materials. As a pivotal equipment in SiC material production, this furnace ensures superior process performance in the sintered products. The resulting SiC materials exhibit uniform particle size, complete reaction, high compound content, and excellent quality. Equipped with a dewaxing system, it enhances wax removal efficiency while maintaining stable furnace atmosphere, thereby extending the service life of carbon felt and heating elements. the furnace employs resistive or inductive heating with long-lasting graphite tube heating elements, delivering efficient heating performance and ease of maintenance.

Uniform heating, reliable insulation, and advanced temperature measurement systems, combined with innovative furnace chamber design, optimized heating structures, and high-quality materials, guarantee temperature uniformity under vacuum conditions. The system utilizes domestic and international brand temperature sensors to ensure measurement accuracy. An advanced temperature control system, featuring imported digital intelligent temperature controllers, integrates with PLC for data communication, enabling fully automated, high-precision temperature control. The system supports programmable heating curves with storage for up to four different 40-stage process profiles.

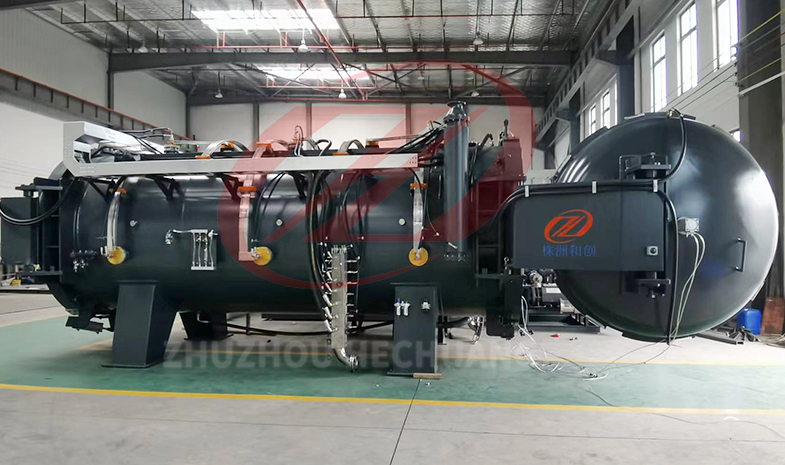

The furnace adopts a single-chamber, horizontal structure with front or dual-door access for simplified operation. Its compact layout minimizes floor space while maintaining operational efficiency.

Advanced automation and safety: A comprehensive PLC system automates water, electrical, and gas controls, incorporating safety interlock protections. The system provides audible/visual alarms for over-temperature, thermocouple failure, abnormal water pressure, furnace overpressure, low water flow, or excessive water temperature. Environmentally friendly and energy-efficient, the furnace ensures purified vacuum exhaust emissions, safeguarding vacuum pump operation and delivering excellent tar removal.

Cooling mechanisms: The high-temperature zone relies on natural cooling, while the low-temperature zone accelerates cooling via positive-pressure inert gas injection. A built-in explosion-proof valve enhances operational safety and reliability.

This design underscores the furnace’s role in enabling high-performance SiC material production through precision engineering, robust automation, and optimized thermal management.
