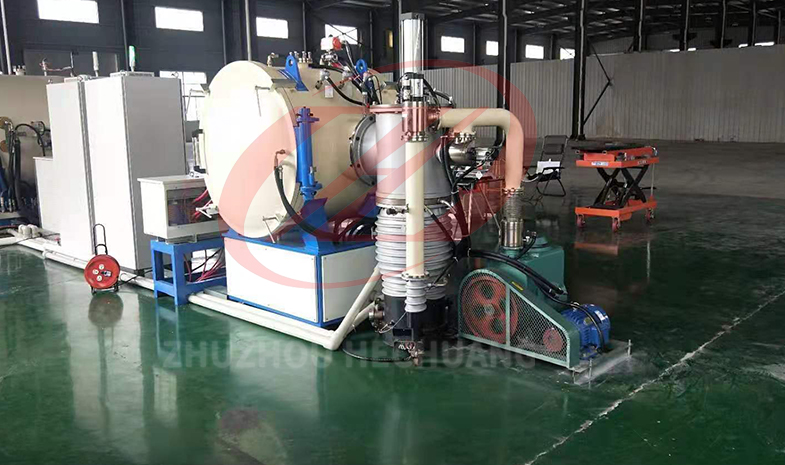

High temperature Vacuum brazing furnace is a joining process in which two or more items are joined together by a filler metal that flows into the joint. The melting point of the filler material is lower than the target material. Unlike many welding processes, vacuum brazing furnace does not require melting of the target material. The filler metal flows by capillary action and is brought to its melting point with the protection of a suitable atmospheric flux. It flows through the parent material and then cools. Vacuum brazing furnace helps to join the same or dissimilar metals with high strength.

Main features of vacuum brazing furnace:

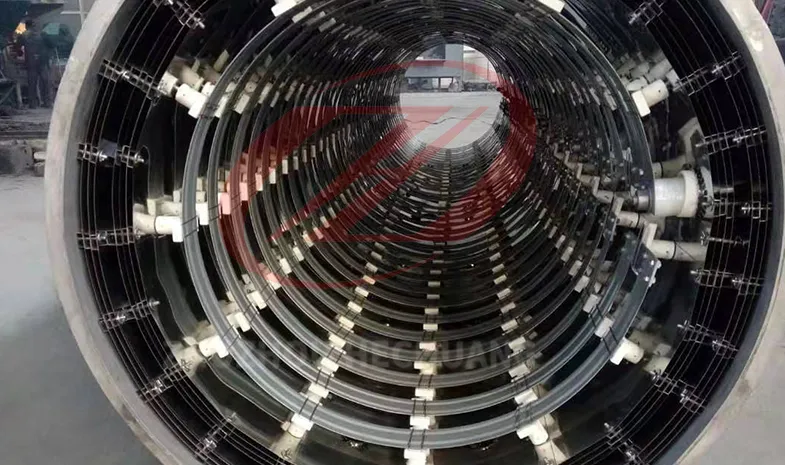

1. Reasonable arrangement of heating elements, large radiation area, long life, multi-zone heating, multi-zone temperature control, to ensure good temperature uniformity in the working area

2. Reasonable design of metal heat insulation screen, good insulation effect, saving electricity.

3. Multi-zone temperature control can be used to ensure higher furnace temperature uniformity.

4. Good working vacuum and pressure rise rate.

Application range:

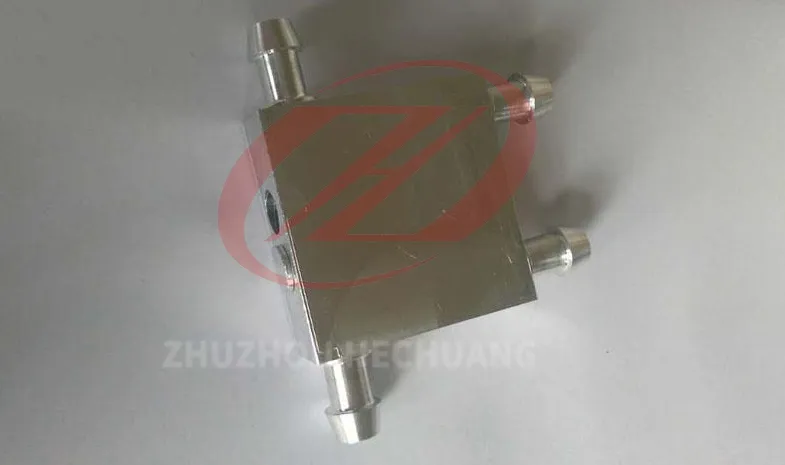

Vacuum brazing furnace is mainly suitable for brazing stainless steel, carbon steel, copper, high temperature alloy, titanium alloy and other materials with nickel, copper, silver, titanium and other solders, as well as vacuum brazing of aluminum alloy devices such as aluminum heat exchangers and radar flat antennas. At the same time, the brazing furnace can also be used for sintering of some ceramic materials that require temperature uniformity and high vacuum.

Company product advantages:

1. High degree of automation, one-button replacement can be realized (vacuuming in the furnace, argon gas flushing process), automatic monitoring of water, electricity and gas during operation, touch screen simulation can observe the equipment operation status at any time, equipment alarm indication, heating curve, and power on and off operation can be viewed and operated on the touch screen.

2. Real materials, the furnace body and pipelines are all made of 316 corrosion-resistant stainless steel or Teflon anti-corrosion spray, and are leak tested before leaving the factory. Good corrosion resistance and sealing performance.

3. High safety, the furnace body is equipped with an automatic explosion-proof valve, which is safe and reliable. The flow switch is installed separately on the sensor part to monitor the water flow in real time. The power supply strictly and effectively sets the over-current value and over-voltage value as required.

4. The equipment integrated monitoring interface can be remotely monitored on the PC side. The manager can observe the equipment operation status at any time and retrieve the equipment operation records and process parameters.
